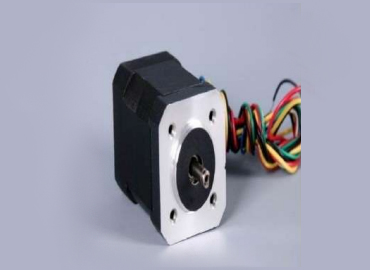

Brushless DC Motor

Product Range -25Watts to 750 Watts

General Specifications :

Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max. radial force	28N @ 20mm from the flange
Max. axial force	10N
Insulation class	Class B
Dielectric strength	500VDC for one minute
Insulation resistance	100M Min., 500VDC

Product Details
Download PDF

Model	SM42BLS41	SM42BLS61	SM42BLS81	SMBLS100
Number of poles	8
Number of phase	3
Rated voltage (VDC)	24
Rated speed (RPM)	4000
Continuous stall torque (N.m)	0.075	0.15	0.22	0.3
Rated torque (N.m)	0.0625	0.125	0.185	0.25
Rated power (W)	26	52.5	77.5	105
Peak Torque (N.m)	0.19	0.38	0.56	0.75
Peak Current (A)	5.4	10.6	15.5	20
Line to line resistance (Ohms)	1.8	0.8	0.55	0.28
Line to line inductance (mH)	2.6	1.2	0.8	0.54
Torque Constant (Nm/A)	0.035	0.0355	0.036	0.0376
Back E.M.F (Vms/KRPM)	3.66	3.72	3.76	3.94
Rotor inertia (g.cm²)	24	48	72	96
Body length (mm)	41	61	81	100
Weight (Kg)	0.30	0.45	0.65	0.8
